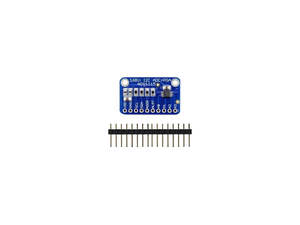

ADS1115 16-Bit I²C Analog-to-Digital Converter (ADC) Module – 4-Channel High-Precision Input

The ADS1115 16-Bit I²C ADC Module is a high-precision analog-to-digital converter based on the Texas Instruments ADS1115 IC. It allows microcontrollers and single-board computers without accurate analog inputs to read analog voltage signals with excellent resolution and stability.

With 16-bit resolution, a programmable gain amplifier (PGA), and a simple I²C interface, the ADS1115 is ideal for sensor measurement, battery monitoring, and precision electronics projects.

Commonly used with Arduino, ESP32, ESP8266, and Raspberry Pi platforms.

The ADS1115 16-Bit I²C ADC Module is a high-precision analog-to-digital converter based on the Texas Instruments ADS1115 IC. It allows microcontrollers and single-board computers without accurate analog inputs to read analog voltage signals with excellent resolution and stability.

With 16-bit resolution, a programmable gain amplifier (PGA), and a simple I²C interface, the ADS1115 is ideal for sensor measurement, battery monitoring, and precision electronics projects.

Commonly used with Arduino, ESP32, ESP8266, and Raspberry Pi platforms. Key Features

16-bit resolution ADC for high-accuracy readings

4 analog input channels

- 4 × single-ended inputs or
- 2 × differential input pairs
I²C interface (SDA / SCL)

Programmable Gain Amplifier (PGA)

- Voltage ranges from ±256 mV to ±6.144 V

Up to 860 samples per second
Low noise and stable measurements
Compatible with 3.3 V and 5 V logic systems (module dependent) Why Choose an ADS1115?

• Raspberry Pi has no built-in analog inputs
• ESP32/ESP8266 ADCs can be noisy or inconsistent
• Provides significantly higher resolution than Arduino’s internal ADC
• Ideal for low-voltage and precision sensor applications Applications

• Sensor interfacing (temperature, light, pressure, gas, moisture)
• Battery voltage monitoring
• Current shunt measurement
• Data logging systems
• Raspberry Pi analog input expansion
• Arduino and ESP32 precision measurement projects
• DIY electronics and prototyping

Package Includes: 1× ADS1115 16-Bit ADC Module.

The image is for illustrative purposes only. Due to variations in camera settings, lighting, manufacturing processes, monitors, and supply, colours may differ. Product appearance and specifications are subject to change without notice.
