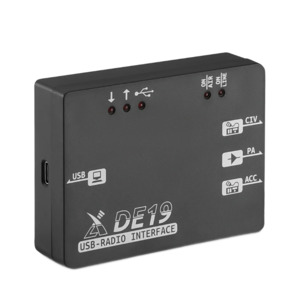

XIEGU G90 / G106 / X5105 DE-19 Data Extension Adaptor

This Xiegu DE-19 integrates a USB interface unit, isolation and amplification unit, and interface units matching for Xiegu G90, G106, X5105 transceivers and the XPA125B 100W power amplifier. It connects to a PC via USB and supports the transfer on audio for digital modes like FT8 as well as PTT to the transceiver (and external amplifier if connected).

When DE-19 is connected to a XPA125B power amplifier it also passes PTT, ALC and band data to the amplifier for full automatic operation including automatic band change.

Compatible with：

- Xiegu G90 G90S HF Radio
- Xiegu G106 QRP Radio
- Xiegu X5105 HF Transceiver
- Xiegu XPA125B Linear Amplifier

Package Includes:

1x DE-19 Digital Adapter
1x Type-C data cable
1x 3.5mm to 3.5mm cable
1x DIN-6 to 3.5mm cable
1x DIN-8 to DIN-8 cable
