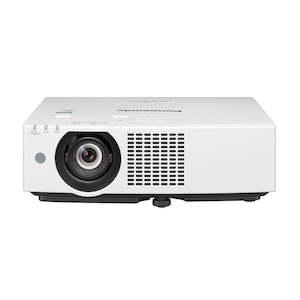

Panasonic PT-VMZ40 4,500 Lumen Compact LCD Laser Portable Projector

Creating the most engaging projection in the smallest spaces
4,500 lm compact and cost-efficient LCD laser projector, designed for long-Lasting brightness and easy installation for education and corporate environments

Key Features:

- Laser LCD, 4,500 lumens, WUXGA
- Compact and lightweight body bringing high brightness dynamic image
- Long lasting laser light source provide consistent brightness
- 1.6x and wide horizontal and vertical lens shift for flexible installation
- Wireless projection capability (optional)

The world’s smallest and lightest 1 compact design with long and reliable operation

The VMZ series uses Panasonic’s unique cooling technology, making it the world’s smallest and lightest 1 laser projector range in its lumens category. With a weight of less than 7.2kg (15.87 lbs), the compact body will fit into any room.
The laser light-source sustains bright images for 20,000 hours, eliminating the replacement hassles and maintenance costs associated with conventional lamps.

1 For LCD laser projectors in the 5,000-lumens class or higher with WUXGA resolution as of November 2018.

1.6 x lens for short throw-distances and enables creation of big images in small places

The 1.6x lens fully supports short throw-distances (throw ratio: 1.09-1.77:1), best for close-range projection. The VMZ series also achieves more installation flexibility with the Vertical and Horizontal lens-shift, particularly useful in limited spaces.
Panasonic’s original DIGITAL LINK connection, based on HDBase-T™, enables transmission of video, audio, and control signals through a single LAN cable for distances of up to 150m (492 ft.) for full HD video and 50m (164 ft.) for 4K video, making installation simple and cost-effective with consistently high quality.

Versatile functions for smooth operation in classes or conferences
Compared to lamps, the laser light-source cuts the time taken to display images after switching on the projector. Quick Start/Quick Off enables you to project images in just one second from standby, so presentations can start immediately. Panasonic has also developed an original Wireless Projector app that allows users to share documents or images from their own devices no matter where they are sitting, without cable hassle. Other features include a USB Memory Viewer function, which displays stored on USB memory devices without needing a PC, and a built-in 10W speaker.

Additional features
Supports 4K signal input for future-ready integration

Specifications Light output 1 4,500 lumens Technology Laser LCD LCD panel - Panel size (mm) 16 mm diagonal (16:10 aspect ratio) LCD panel - Panel size (inch) 0.64 inch diagonal (16:10 aspect ratio) LCD Panel - Display Method Transparent LCD panel (x 3, R/G/B) LCD Panel - Drive Method Active matrix LCD Panel - Pixels 2,304,000 (1920 x 1200) x 3, total of 6,912,000 pixels Lens 1.6 x Manual (throw ratio 1.09-1.77 :1), F = 1.60-2.12, f = 15.30-24.64 mm Light Source Laser diode Screen size (diagonal) (mm) 0.76 - 7.62 m, 16:10 aspect ratio Screen size (diagonal) (inch) 30-300 in, 16:10 aspect ratio Center-to-Corner Uniformity 1 85 % Contrast 1 3,000,000:1 (all white/all black) (Input signals:PC,LIGHT POWER:NORMAL,PICTURE MODE:DYNAMIC,DAYLIGHT WIEW:OFF,DYNAMIC CONTRAST: 1 ,AUTO POWER SAVE:OFF) Resolution 1920 x 1200 pixels Optical axis shift - Vertical (from center of screen) 0 % - 44 % (Manual) Optical axis shift - Horizontal (from center of screen) ± 20% (Manual) Keystone correction range 2 Vertical: ±25°, Horizontal: ±35° Installation Horizontal/Vertical, free 360-degree installation Terminals - HDMI 1/2 IN HDMI 19-pin x 2 (Compatible with HDCP, Deep Color, 4K/30p signal input) Terminals - Computer 1 In D-sub 15-pin (female) x 1 (RGB/YPBPR/YCBCR) Terminals - COMPUTER 2 IN / MONITOR OUT D-sub 15-pin (female) x 1 (RGB/YPBPR/YCBCR) (input/output switching) Terminals - Video In Pin jack x 1 Terminals - AUDIO 1/2 IN M3 stereo mini-jack x 2 Terminals - AUDIO 3 IN Pin jack (L/R) x 1 Terminals - Variable Audio Out M3 stereo mini-jack x 1 Terminals - Serial In D-sub 9-pin x 1 for computer control (RS-232C compliant) Terminals - LAN RJ-45 x 1 for network control, 10Base-T, 100Base-TX, compatible with PJLink™ (Class 2) Terminals - USB CONNECTOR USB connector (Type A) x 1 for Memory Viewer function, power supply (DC5V, maximum 2A 3), optional wireless module AJ-WM50 Power Supply AC 100-240 V AC, 50/60 Hz Power Consumption TBD Built-in Speaker 10 W (monaural) Operating noise 1 NORMAL: 37dB, QUIET: 27dB Cabinet Materials Molded plastic Filter Included Filter cleaning cycle: 20,000 hours (0.08 mg/m3 of particulate matter), 10,000 hours (0.15 mg/m3 of particulate matter)
