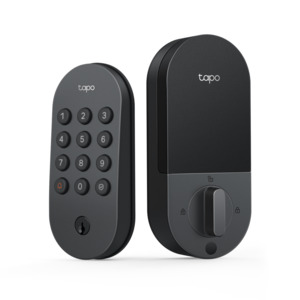

TP-Link Tapo DL100 Tapo Smart Lock
- Multiple Ways to Unlock: Keyless keypad, energy-efficient Bluetooth for nearby access, remote Wi-Fi via the Tapo App, voice commands with PIN verification, and 2 backup keys for peace of mind.
- Convenient & Secure Access for All: Manage access effortlessly by creating groups for family, guests, or visitors in the App - no physical keys required.
- Keyless Tactile Buttons: Skip the hassle of keys with up to 200 customisable codes. Our smart lock features a backlit keypad for nighttime use and the option to enter your passcode in between random digits for added security.
- AA Battery Powered: Lasts up to 7 months in Wi-Fi mode or 10 months in Bluetooth mode. Includes easy battery replacement and a USB-C port for emergency power. 4 AA batteries included.
- Stay Informed, Control from Anywhere: Receive real-time alerts, check door status, and lock or unlock it remotely with the App. Set custom profiles for family and guests, and track all activity with timestamps to see who accessed your home and when.
- Never Forget to Lock Again with Auto-lock: Turn on auto-lock to automatically lock after use with customisable time intervals (e.g., 15 seconds).
- Smart Home Integration: Compatible with Alexa, Google Home, and Samsung SmartThings for one-app management and voice control.
- Pin Attempt Limiter: Automatically locks after a set number of failed unlock attempts, protecting your home from unauthorised access.
- Simple Installation: Installs easily on standard deadbolts - no drilling, no extra holes, no hassle.
LOCK Interface & Button Exterior Assembly 1× Keypad
1× Doorbell Ring Button
1× Lock Cylinder
1× Locking/Unlocking Button & LED
1× Type C plug in (Emergency Power Supply) Interior Assembly 1× Wi-Fi On/Off Button
1× Battery Compartment
1× Thumb Latch
1× Reset Button
LOCK Maximum Access code 200 One-time Code Yes Tapo APP Yes Emergency Unlock Yes Menchanical Key Yes Automatic Locking Yes Weatherproofing IP54 (Exterior Only) BHMA Certification Grade 3
NETWORK Network Connectivity IEEE 802.11b/g/n, 2.4 GHz Wi-Fi Wireless Connectivity Connect via Wi-Fi and BLE 5.0 Protocol TCP/IP, ICMP, DNS, HTTPS, TCP, UDP, DHCP, ARP Transmission Rate Typical 15Mbps
SECURITY Security 128-bit AES Encryption with SSL/TLS
WPA/WPA2-PSK/WPA3
POWER Power Source 4 AA/LR6 Batteries (Included) DC Power Connector Size USB-C Typical Power Consumption 1 mW (WiFi Mode Standby) Maximum Power Consumption 412 mW
GENERAL Smart Integration Google Assistant, Amazon Alexa, Smartthings, IFTTT Mounting Options Door-Mounted Operating Temperature Exterior Assembly: -30℃ ~70℃ (-22 ℉ ~158 ℉ ) Storage Temperature -40℃ ~70℃ (-40 ℉ ~158 ℉ ) Operating Humidity 10%~90% RH, Non-condensing Storage Humidity 0~90% RH, Non-condensing Package Content Smart Wi-Fi Door Lock
Installation Mounting Plate
Latch Bolt
Strike Plate
Dust Box
AA/LR6 Battery ×4
Silicone Cover
Keys
Screws
Measuring Template
Installation Guide Stickers
Quick Start Guide
Dimensions( H X W X D ) Exterior Assembly: 149.35 67.4 55.96 mm (5.88 2.65 2.20 in.)
Interior Assembly: 166.9 72.4 46 mm (6.57 2.85 1.81 in.) Certifications FCC, RoHS, BHMA, CEC, NRCan, DOE, MSDS, UN38.3, IP54 For additional version information, please go to the support page.
† To ensure security, voice command unlocking requires a voice password as a second layer of authentication. Please note that requirements and procedures may vary across third-party platforms. Voice Control is only supported by select voice assistants.
‡ Battery life is based on TP-Link laboratory tests, assuming 20 unlocks per day: up to 7 months in Wi-Fi mode and up to 10 months in Bluetooth mode. Actual performance may vary due to device settings, router specifications, usage, and environmental factors. Alkaline batteries may suffer reduced life and unlocking failures in cold environments due to poor low-temperature performance.
§ Please ensure your phone supports power output when using it to power the lock in an emergency.
As the Tapo App is continuously updated, UI images are for reference only. This lock requires an internet connection.
