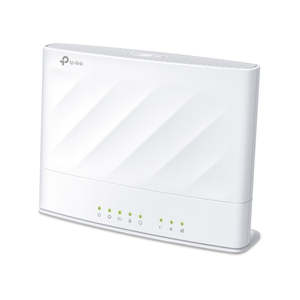

TP-Link Archer MX700, 4G+ AX1500 Dual Band Wi-Fi LTE Router
- Enjoy 4G internet everywhere: supports 4G Cat6 up to 300 Mbps download speed.
- Dual band Wi-Fi 6 Speed : 1201 Mbps on 5 GHz 300 Mbps on 2.4 GHz
- Plug and Play: Internet setup made simple. Just plug in an activated SIM card and ready to browse.
- Up to 128 Concurrent Devices: Ensures robust, reliable connectivity for households or offices.
- EasyMesh-Compatible - Co-work with EasyMesh products, to provide a more flexible and cost-effective Mesh network with a single Wi-Fi name for seamless whole-home coverage.†
- Full Gigabit Ports for Internet access : provides outstanding speed, ensuring an enhanced networking experience.
- Simplified Setup: Easily set up and manage your network with the Tether app.
5G/4G/3G Network Mode 4G：
FDD:B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/700 MHz )
TDD:B38/B40/B41 (2600/2300/2500 MHz)
3G：
B1/B5/B8 (2100/850/900 MHz) Speed 4G Cat 6：
300 Mbps Download Speed
50 Mbps Upload Speed
SIM Type Nano SIM Card
HARDWARE FEATURES Interface 1× Gigabit LAN/WAN Port 3× Gigabit LAN Ports Dimensions ( W x D x H ) 7.86×5.85×2.66 in (199.7×148.6×67.5 mm) Antenna 2× Internal 4G/3G Antennas 2× Internal Wi-Fi Antennas 2× External Antenna Ports
WIRELESS FEATURES Wireless Standards IEEE 802.11a/n/ac/ax 5 GHz, IEEE 802.11b/g/n 2.4 GHz Frequency 2.4 GHz and 5 GHz Signal Rate 300 Mbps at 2.4 GHz, 1201 Mbps at 5 GHz Reception Sensitivity 5 GHz:
11a 54M: -77 dBm
11ax HE20:-64 dBm
11ax HE40: -61 dBm
11ax HE80:-59 dBm
11ac VHT20: -69 dBm
11ac VHT40: -66 dBm
11ac VHT80 : -63 dBm
11n HT20: -74 dBm
11n HT40: -71 dBm
2.4 GHz:
11g 54M: -78 dBm
11n HT20: -75 dBm
11n HT40: -72 dBm Wireless Functions Enable/Disable Wireless Radio, Wireless Schedule, WMM Wireless Security 64/128-bit WEP, WPA/WPA2 Personal, WPA/WPA2 Enterprise, WPA/WPA3 Personal
SOFTWARE FEATURES Quality of Service Bandwidth Control Security IPv4 SPI Firewall, ALG, IP and MAC Address Binding, Access Control Operating Modes 3G/4G Router, Wireless Router WAN Type Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access) Management Features TP-Link Cloud, Local Management, Remote Management DHCP Server, DHCP Client List, Address Reservation Port Forwarding Virtual Server, Port Triggering, UPnP, DMZ Dynamic DNS TP-Link, DynDns, NO-IP Protocols IPv4, IPv6 Guest Network 2.4 GHz Guest Network x 1, 5 GHz Guest Network x 1 Administration Upgrade Firmware, Factory Default, System Log, Diagnostic Tools
OTHERS Certification CE, RoHS Package Content 4G Cat6 300 Mbps LTE AX1500 Wireless Dual Band Gigabit Router Archer MX700
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide System Requirements Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10, MAC OS, NetWare, UNIX or Linux
Edge, Firefox, Chrome, Safari, or other JavaScript-enabled browser
You are recommended to use the latest version Environment Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
