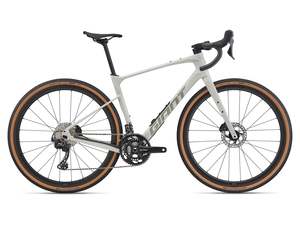

Giant Revolt Advanced 0

Rough roads, gravel or dirt. However you choose to roll, this bike does it all. The lightweight, smooth-riding composite frameset and adjustable wheelbase make it more capable than ever.
Key Performance Factors Fast and light

Advanced composite frame and fork save more than 160g compared to the previous model. Updated geometry includes a lower bottom bracket, longer reach and steeper head tube angle for improved acceleration and climbing. Tuned compliance

Dropped seatstays with thin tubing absorbs road shocks and vibrations. D-Fuse handlebar and seatpost work as a system to add compliance without sacrificing stiffness while cornering, sprinting or climbing. Adaptable to the terrain

A flip chip on the rear dropout adjusts the wheelbase: short for quicker handling, or long for improved stability at speed. The long setting allows for larger diameter tires up to 53mm. You can also choose the included D-Fuse seatpost for maximum compliance, or switch to a 30.9mm round or dropper post.

Specifications

- Sizes: XS, S, M, M/L, L, XL
- Colour: Snow Drift
- Frame: Advanced-Grade Composite, 12x142mm thru-axle, disc, flip chip dropout
- Fork: "Advanced-Grade Composite, full-composite OverDrive steerer, 12mm thru-axle, disc"
- Handlebar: Giant Contact XR D-Fuse, 31.8mm XS:42cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm
- Grips: Stratus Lite 3.0
- Stem: Giant Contact Aerolight XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm
- Seatpost: Giant D-Fuse SL, composite, 14mm offset
- Saddle: Giant Grit
- Shifters: Shimano GRX RX-820, 2x12
- Front Derailleur: Shimano GRX RX-820
- Rear Derailleur: Shimano GRX RX-820
- Brakes: Shimano GRX RX-820 hydraulic, Shimano SM-RT70 rotors F 160mm, R 160mm
- Brake Levers: Shimano GRX RX-820 hydraulic
- Cassette: Shimano CS-HG710, 12-speed, 11x36
- Chain: KMC X12L-1
- Crankset: Shimano GRX RX-820, 31/48 XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
- Bottom Bracket: Shimano, press fit
- Rims: Giant CXR 2 Carbon Disc WheelSystem, F 35mm, R 35mm
- Hubs: F Giant alloy, CenterLock, 12mm thru-axle R Giant alloy, 3-pawl driver, CenterLock, 12mm thru-axle
- Tyres CADEX GX, 700x40c, tubeless
- Extras Tubeless prepared, 53mm max tyre size in "long" flip chip position, 45mm max tyre size in "short" flip chip position, In frame storage bag
- Max Tire Clearance 53mm in "long" position

For more information including a size guide
