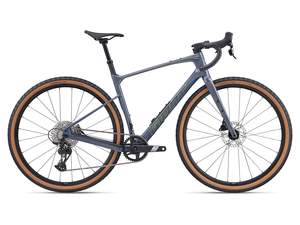

Giant Revolt Advanced 1

Rough roads, gravel or dirt. However you choose to roll, this bike does it all. The lightweight, smooth-riding composite frameset and adjustable wheelbase make it more capable than ever.
Key Performance Factors Fast and light

Advanced composite frame and fork save more than 160g compared to the previous model. Updated geometry includes a lower bottom bracket, longer reach and steeper head tube angle for improved acceleration and climbing. Tuned compliance

Dropped seatstays with thin tubing absorbs road shocks and vibrations. D-Fuse handlebar and seatpost work as a system to add compliance without sacrificing stiffness while cornering, sprinting or climbing. Adaptable to the terrain

A flip chip on the rear dropout adjusts the wheelbase: short for quicker handling, or long for improved stability at speed. The long setting allows for larger diameter tires up to 53mm. You can also choose the included D-Fuse seatpost for maximum compliance, or switch to a 30.9mm round or dropper post.

Specifications

- Sizes: XS, S, M, M/L, L, XL
- Colour: Midnight Moon
- Frame: Advanced-Grade Composite, 12x142mm thru-axle, disc, flip chip dropout
- Fork: "Advanced-Grade Composite, full-composite OverDrive steerer, 12mm thru-axle, disc"
- Handlebar: Giant Contact XR D-Fuse, 31.8mm XS:42cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm
- Grips: Stratus Lite 3.0
- Stem: Giant Contact Aerolight XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm
- Seatpost: Post Moderne, dropper, 30.9mm with 30mm of suspension XS:365mm / 75mm drop S:415mm / 100mm drop M:415mm / 100mm drop M/L
- Saddle: Giant Grit
- Shifters: SRAM Apex AXS HRD, ED-APX-D1
- Rear Derailleur: SRAM Apex, RD-APX-E-D1
- Brakes: SRAM Apex HRD, ED-APX-D1, Giant MPH rotors F 160mm, R 160mm
- Brake Levers: SRAM Apex HRD, ED-APX-D1
- Cassette: SRAM Apex XPLR PG-1231, 12-speed, 11-44
- Chain: SRAM Apex-D1, 12-speed
- Crankset: SRAM Apex 1, DUB , 40T XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
- Bottom Bracket: SRAM DUB, Press Fit
- Rims: Giant P-X2 Disc wheelset, alloy
- Hubs: Giant alloy, 12mm thru-axle
- Tyres: Giant CrossCut Grip, 700x45c, tubeless
- Extras Tubeless prepared, 53mm max tyre size in "long" flip chip position, 45mm max tyre size in "short" flip chip position, In frame storage bag
