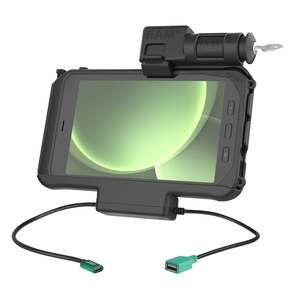

RAM Key Locking Power + Data Dock for Samsung Tab Active5 & 3

RAM-HOL-SAM58CPKL-1AU RAM® Key Locking Power Data Dock for Samsung Tab Active5 & 3

Features

- Key locking powered cradle provides charging and data transfer capabilities for the Samsung Galaxy Tab Active5, Tab Active3 and 2 through integrated pogo pin connector
- Powered via USB-C connector (Non-Power Delivery Charger required); connect a single input device via USB-A connector
- Contains 4-hole AMPS hole pattern for RAM® ball components
- Access to speakers, mics, headphone jack, and NFC reader remain while device is docked; allows access to the GDS® shoulder strap loops on RAM® Skin™
- Backed by a 3-year warranty

This key locking RAM® EZ-Roll’r™ power cradle for the Samsung Tab Active5, Tab Active3 and 2 has been designed to meet the demands of field workers in a variety of applications including transportation, field sales, logistics, manufacturing, and much more. Power and data sync capabilities are provided to the device through GDS® pogo pins while taking advantage of this cradle's USB-A port for an additional peripheral making this the ideal, compact mounting solution for your mobile workstation. Access to the stylus remains while the device is docked. Included is a set of four nuts and bolts to connect the cradle to any B or C size RAM® components containing the universal 4-hole AMPS pattern.

This cradle also contains space in the back allowing for a GDS® Hand-Stand™ attachment so you can easily take your Tab Active5, 3 & 2 from your vehicle, to your person, to your desk with zero hassle.

Compatible Devices

Samsung

Tab Active5

Tab Active3

Tab Active2

Hardware Included:

(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nylock Nuts
(1) Optional Cable Clamp Housing
(2) Large Cable Ties
(7) Small Cable Ties

Product Dimensions:

Width: 234.9mm / 9.25"
Height: 196.9mm / 7.75"
Depth: 76.2mm / 3"

Hole Pattern:

4-Hole AMPS: 1.181" x 1.496"

Materials:

High strength composite

Input Voltage:

5.3-5.4VDC

Output Voltage:

5VDC

Power Output:

500mA

Input Connector:

USB Type-C Female

Input Cable Length:

250mm

Output Connector:

USB 1.1 Type A

Output Cable Length:

250mm

Peripheral Output:

500mA

Transfer Speed:

12Mbps

Warranty:

3 year warranty

Weight:

499 grams / 1.1 lb

Additional Information:

Important: This dock is not compatible with any Power Delivery (PD) Chargers. While the dock contains a USB-C connector, the pogo pads on the side of the tablet will not support Power Delivery. Therefore, a non-Power Delivery charger is required to function properly.
This product will not support the "No Battery Mode" function of the Tab Active3. To support "No Battery Mode", see RAM® Tough-Case™ options
