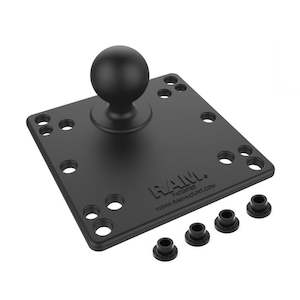

RAM Square VESA Base Plate - 100 & 75mm VESA pattern - C Size 1.5" Ball

RAM-246U RAM® 100x100mm VESA Plate with Ball - C Size


Features

120mm square plate features the 100 x 100, 75 x 75 VESA and 100 x 50 half VESA hole patterns for connection to a wide variety of devices
Included C size 1.5" RAM® rubber ball allows for connection to any C size RAM® double socket arm
RAM® ball and socket technology allows for near-infinite adjustability
Made of powder-coated, marine-grade aluminium for durability and reliability in the most demanding environments
Backed by a lifetime warranty


This is a 120mm Square Base with VESA 4 x 100mm holes and 4 x 75mm holes in each corner. Same as the RAM-246-AD1U but includes the shoulder washers


Specs & Features

Plate Hole Patterns:
100 x 100 VESA Pattern
75 x 75 VESA Pattern
100 x 50 Half VESA Pattern

Base Plate Dimensions

120.65 x 120.65mm (4.75 x 7.75")

HARDWARE INCLUDED
(4).312" x.187" Shoulder Washers

Material:
Powder Coated Marine Grade Aluminium

Ball Size:
1.5" Rubber Ball Size

Weight:
290 grams (0.64 lbs)

Weight Capacity
Standard Use:
1.814kg (4 lbs)
Heavy-Duty Use:
1.36kg (3 lbs)


QUESTIONS & ANSWERS
Q: What are the 4 shoulder washers used for?

A: The four included shoulder washers are meant to accommodate smaller screws in case the original holes on the ball plate are too large. These washers will reduce the risk of smaller screw heads stripping through the larger holes, and can be used with any of the holes on the ball.
