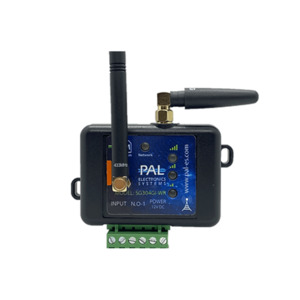

PAL-SG314GI-WR - 3G/4G GSM Controller - 1 x Relay + 1 x input - 12,000 App or Dial in user and Remote control ability
3G/4G GSM Controller - 1 x Relay 1 x input - 12,000 App or Dial in user and Remote control ability (up to 4000 remotes) - SIM Card is not included
1 x optical relay
1 x Input relay for alerts
Remote control support
1 x Input relay for alerts
3/4G Unit
12,000 Palgate App or dial in Users
4000 smart remote controls ability
Control with free application or easy web interface
Real time indications to Email, SMS, API
Unlimited logs and Timers / events
Real time Push Notifications Palgate App and/or emails
365 days calendar includes holidays
Astronomical clock – follow sunset and sunrise for lighting control
Create your own holiday close/open time
SIM card control system – Automatic payments and renewals
New Control room to control multiple gates via one page on portal
Import/Export Logs and users via Excel files
Programmable relay pulse width
Input voltage 12-24 VDC
Size 50x70 mm
Our recommendation is to connect any SG3xxx-XX 3G or 4G system to 12V / 1A,
The system consumes less current depending on its distance from the Cellular network antenna (average current consumption is ~30mA).
The system works with an optical relay and the current consumption is very low, 3mA is added when the relay works.
Palgate device are successfully attached to multiple Solar gate systems around Australia
The maximum load that can be connected to the relay is 60v / 900mA.
Web Portal Feature
Portal is a payable service charge annually - Product Code PAL-PORTAL-ANNUAL
State of the Art Web Interface Portal to control all your Gates and Devices from one location
· easily control your units from anywhere in the world via web interface.
· add/delete users, smart remote controls and devices
· settings changes, timers, reports, logs and audit logs
· all the information you care about is kept in a secure cloud at the highest level and much more..
· virtual maps to see the installation place using Google Maps
· when you log into the Palgate Portal a new world of control opens up.
· the database allows you to search your customer by:
· serial number, Location, or suburb, or by a username or phone number
· real time indications to Email, SMS, API
· unlimited logs and Timers / events
· real time Push Notifications to Palgate App and/or emails
· newly designed 365 days calendar includes holidays
· newly designed Astronomical clock – follow sunset and sunrise for lighting
· create your own holiday to suspend close/open time
· SIM card control system – Automatic payments and renewals
· new Control Room for Emergency Web Service page to Open Close or Latch multiple gates at the same time via one page on portal
· import/Export Logs and users via Excel files
allows gate Manufacturers, Installers or end users with multiple gates access the ability to control many scenarios:
· Reception on SIM Cards
· Noise on SIM reception
· Gate position (Open, Close) (require a unit with Input and a rid swith)
· Add multiple users from Excel Spreadsheet (import and Export up to 12,000 users)
· Duplicate Gates by a click of a button
· Places "neighbourhood" like groups of devices where you change all devices at once
· Create Locations and limit customers to what they can perform in each location
· Open and close gates at a specific time and close it on another
· Define Different group
