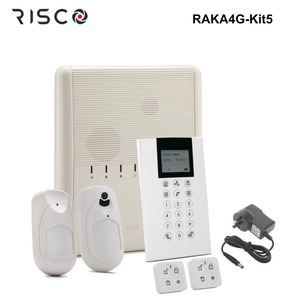

RAKA4G-Kit5 - Risco Agility 4 Kit - GSM Control Panel, Panda Keypad, 1x iWave, 1x eyeWave PIRCam, 2x Panda Remotes, PSU
AGILITY4 PANEL, PANDA KEYPAD, 1x iWAVE DETECTORS, 1x eyeWAVE PIRCAM, 2x WIRELESS REMOTES, 1x INTERNAL BATT
Features: Kit includes
- 1x Risco - Agility4 Control Panel complete with 4G GSM Module (RW132V4F1C0F
- 1x Risco - Agility4 Panda Wireless keypad prox, 433MHz (RW332KPP400A)
- 1x Risco - iWAVE 2-Way Wireless PIR Pet Detector, 12m, up to 36Kg, 433MHz (RWX95P43300A)
- 1x Risco - eyeWAVE Wireless Pet PIRCAM, 12m, up to 36Kg, 433MHz (RWX95CMP400C)
- 2x Risco - Panda 2 way 4 Button Wireless remotes, 433MHz (RWX332KF400A)
- 1 x Risco 9V DC Plug Power pack
- 1x 6VDC 3.2Ah Battery Specs Model - RAKA4G-Kit5
Features:
- Wireless zones (1-way or 2-way): 32
- Wired Zones: 4 (with I/O Expander)
- Wireless PIR Cameras (incl. Beyond): 8
- User codes: 32
- Partitions: 3
- Remote Controls (1- way or 2-way): 8 (4 button or 8 buttons)
- Keypads (2-way): up to 3
- Self monitoring app gives customers full control
- Full range of accessories available
- Wireless Sounders (2-way): 3 (Indoor or Outdoor)
- Wired Outputs: 4 (with I/O Expander): 2x3A relay and 2x500mA
- X-10: Supported with I/O Expander
- Event log: 1000 (panel), 2000 (cloud)
- Monitoring Station accounts: 3
- Follow-me destinations: 16 (panel), unlimited (cloud)
- Communication: Up to 3: 3G, 2G, IP and PSTN in any combination
- Reporting formats: Contact ID, SIA level 2 & 3 (text support), IP/GSM Receiver, SIA IP (with encryption)
- Receiver, SIA IP (with encryption)
- Engineer Programming Methods:
- Local using RS232 for Configuration Software
- Local using LCD 2-way keypad
- Remote using Remote using Configuration Software (3G, GPRS, IP, PSTN) direct or through the cloud
- Firmware upgrade: Local via RS232 or remote via 3G, GPRS or IP
- Automated scheduling: 8 (arm/disarm or output control)
- End user features:
- Smartphone app and web browser for video verification, arm/disarm, control and monitoring the system
- Push notifications, live video stream with recording capabilities
- Email: Event and images notification
- SMS: Event notification and remote control
- Audio: Voice event messaging, touch-tone control with full voice menu guide, 2-way audio for listen-in and speak-in
- Dimensions (H x W x D): 268.5 x 219.5 x 64 mm (10.57 x 8.64 x 2.52 inch)
Technical Specifications
- Power: 230VAC (-15% 10%), 50Hz, 50mA
- Units:
- Main board: Typical 130mA
- GSM: Stand by 35mA, Communication 300mA
- Modem: Stand by 20mA, Communication 60mA
- IP Card: 90mA (Max)
- Backup battery: Sealed Lead Acid Battery 6V 3.2Ah
- Speaker configuration: External in parallel with internal or additional external
- Internal Siren intensity: 90 dBA @1m
- Operating temperature: -10C to 40C
- Storage temperature: -20C to 60C
- Dimensions: 268.5 mm x 219.5 mm x 64 mm (10.57 x 8.64 x 2.52 inch)
- Weight (no battery): 1.31Kg (Full configuration)
- Radio Immunity: According to EN 50130-4
- Frequency: 433.92 MHz
