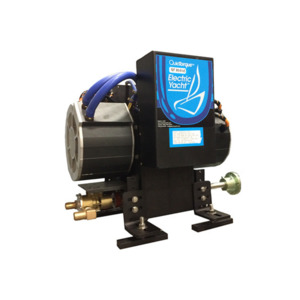

QuietTorque™ 30.0 LC Electric Motor - 48Volt

The QuietTorque™ 30.0 LC provides 48Vdc electric propulsion with high sustained output and is ideal for hybrid applications. Typically, the QuietTorque™ 30.0 LC will replace a 35 to 60hp diesel engine. By using dual liquid cooled PMAC (Permanent Magnet AC) motors, Electric Yacht can produce this powerful, compact, Plug-n-Play system and stay within the safe low voltage standard. Typical battery size is 400Ah at 48Vdc. These systems can be installed by a competent boat owner using simple tools. To be prudent, we recommend that a certified marine electric technician review the completed system. Each system is engineered for your boat to maximize the speed and range of the boat. The System is backed by Electric Yacht’s three-year limited warranty.

Specifications

Motor type: 2 PMAC Brushless
Voltage: 48 Vdc
Current: 600 Adc (2 x 300Adc)
Max power input: 30.0 kW
Weight: 195 pounds
Frame: Anodized Aluminum
Permanent magnet Alternating Current

QuietTorque 30.0 LC Electric Motor Datasheet
