Ford Falcon XR6 Turbo, Territory, BA, BF & FG Direct Replacement upgraded Turbocharger

Buy quality products from the knowledgeable turbo specialists with 15 years in the business - Turbo Bits

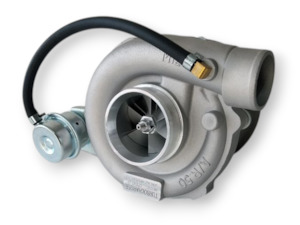

Brand new complete turbocharger, each of our turbos are balanced and tested after assembly.
Direct bolt on replacement
12 Month Warranty - See terms
Gaskets included

Brand new replacement upgrade turbo to suit BA BF FG Ford falcon XR6 turbo and Ford territory turbo models.

This model we have developed ourselves and features a larger 32/38mm wastegate flapper mod already done to prevent boost spiking at higher boost levels.

No re tune required, we have simply fixed / upgraded the factory flaws in the original design.

Perfect upgrade for someone looking to run higher boost levels too.

GT3582R GT3582 & Upgrade over the FG GT3576R GT3576

Bearing type:360 degree thrust Journal bearing
Cooling type: Water and oil cooled
Horsepower: 400-600hp

Compressor details
A/R 0.50
Air inlet 3.00"
Air outlet 2.00"
Inducer 61.40mm
Exducer 82.00mm

Turbine details
A/R 1.06
Turbine housing flange:T3
Exhaust outlet:5 bolt
Inducer 67.75mm
Exducer 62.30mm
