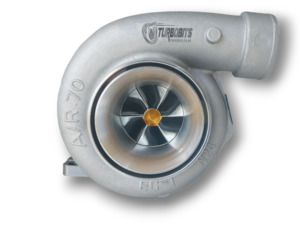

GT3582 T51R Mod Turbo

Brand New - Turbo Bits
Model: GT35
Bearing System: Journal bearing or Ball bearing
Flange: T3 or T4
Compressor: A/R.70 - T51R Mod
Turbine: A/R.63,.82 or 1.06 - 76mm exhaust with 90mm V-Band
HP Rating: 400-650hp
Engine size: 2000cc to 3500cc

More Details:

This model comes with the anti surge and billet compressor wheel for efficient spool up. A/R options available for smaller displacement 4 and 6 cylinder engines or even as a single turbo on a 4500cc. As a V8 twin turbo this is up to 9000cc. Feel free to to discuss the best set up for your application we have lots of different options and sizes in stock.

Model:
GT35 GT3540 GT3582
Oil feed: 7/16-24 UNF
Water feed: M14x1.5
Oil drain: 38mm PCD

COMPRESSOR DETAILS:
A/R 0.70
T51R Mod compressor cover
Air inlet 4.00" (We have silicon joiners if required)
Air outlet: 2.50" (We have silicon joiners if required)

Compressor Wheel Dimensions:
Inducer - 61.40mm
Exducer - 82.00mm

TURBINE DETAILS:
Turbine: A/R 0.82
Exhaust outlet: 90mm V-Band (we have clamp sets for $79)
Entry Flange: T3 or T4

Turbine Wheel Dimensions:
Inducer - 67.85mm
Exducer - 62.30mm

TURBO DETAILS:
Brand New
Billet Compressor wheel, for faster spool up and stronger design
Anti Surge - T51R Mod, for super unique sounding spool!
Bearing type: Ceramic ball bearing (Journal bearing available in stock)
Cooling type: Oil and water cooled - Can run oil cooled only but we recommend to run both.
Horsepower: 400-650hp
Recommended Boost: 20psi
Max Boost: 30psi
