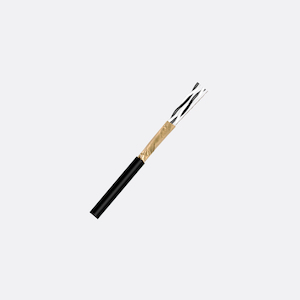

2 x 0.56mm² - IPT2703 - Tycab NZ All Your Cable Sorted

V90HT PVC insulated

Applications
Signal and Control of machinery, Data Transfer.

Enquire

Specification Sheet:
Click to download specifications

1 Pair 16/. (0.5mmsq). Tinned Copper Wire.
V90HT (V105) P.V.C insulated.
Polyester barrier tape plus Aluminium / Polyester tape screen including a 7/.30 TACW drain wire.
V90HT. P.V.C. sheathed Instrument cable.
Oxygen-Free Copper. RoHS Compliant.

Voltage rating: 300/500v

Construction

Conductor: 16 strands of 0. mm Tinned Annealed Copper to AS/NZS11 5 drawn from Class 10 copper to AS/NZS1574.
Max. D.C. resistance at 0C: 38.4 ohms / km.

Insulation: Coloured V90HT (formerly V105) P.V.C. to AS/NZS3808.
Nominal Diameter: . 0 mm.
Nominal Wall Thickness: 0.40 mm.

Lay Up: 1 Pair laid up.
1. White plus Black

Screen: Aluminium / Polyester tape screen applied in contact with a 7/. 5 T.A.C.W drain wire.
A clear polyester barrier tape over lay-up.

Sheath:Coloured P.V.C. type .....
