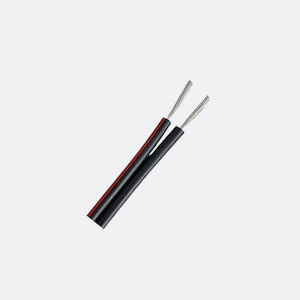

2 x 10mm² - H1Z2Z2-K2X10 - Tycab NZ All Your Cable Sorted

EN50618/IEC6 930 131
XLPO insulated 1.5kV DC Only

Applications
Recreational Vehicle and Solar Panel Installations.

Enquire

Specification Sheet:
Click to download specifications

X 80/0.4 (10mmsq). Tinned Copper Wire.
Halogen-Free Insulated & Halogen Free Sheathed in Twin format.
Certified to EN50618/IEC6 930. TUV
1.5kV dc -40c to 90c.

Construction

Conductor: 80 strands of 0.4mm nom. tinned Annealed Copper.
Max. D.C. resistance at 0C: 1.95 ohms / km.

Insulation: Coloured Halogen Free Low Smoke Flame Retardant XLPO.
Nominal Wall Thickness: 0.67 mm.

Core Colours:
1. Black
. Red

Sheath: Black with red polarity stripe on side of red core.
Halogen Free Low Smoke Flame Retardant.
Single Double Insulated (TWIN) configuration.
Nominal Dimensions: 17.3 x 8.5 mm.
Nominal Wall Thickness: 0.83 mm.

Identification: Printed on sheath in contrasting colour – TYSOLA XLPO insulated TUV pfG 1169 x 10MM...
