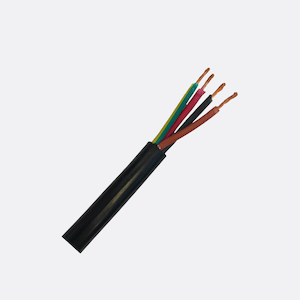

4 x 1.5mm² - FRX04/1.5 - Tycab NZ All Your Cable Sorted

0.6/1kV EPR Rubber Insulated

Applications
Hazardous Areas, Lighting and Entertainment, Marine, Power, Pumps and Energy Chains.
Submersible to 200m’s, H07RN-F

Enquire

Specification Sheet:
Click to download specifications

Type of Cable: RUBBER C 1.5mm2 PC

Conductors:

Material: Plain annealed copper wire, class 5
No. of cores:
Nominal cross section: mm2 1.5
Nominal stranding: No./mm 8/0.2

Insulation of Conductors:

Material: CPE Type EM2 – Rubber
Core Colours: Red, Black, Brown, Green/Yellow

Sheath:

Material: CPE Type EM2 – Rubber
Nominal wall thickness: mm 1.50
Colour: Black

Approx. outer diameter: mm 11.5
Approx. Weight: kg/km 168
Standards: IEC 60227 VDE0281 AS/NZS5000.1.
Nominal Voltage Rating: V 600/1000 RoHS
Maximum Permissible Conductor Temp Under SC Conditions: °C 200 (> 80 minutes)
Operating Temperature: °C -50 to 150°C
Maximum Recommended Pull Tension: N/mm2 >12....
