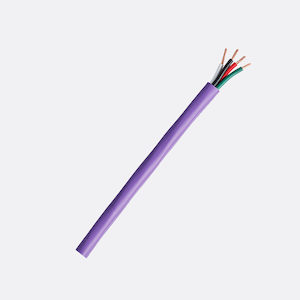

4 x 2.1mm² - LMC04/2.1 - Tycab NZ All Your Cable Sorted

V75 PVC insulated

Applications

100v Line PA & Theatre Systems (Residential and Commercial)

Enquire

Specification Sheet:
Click to download specifications

Core 105/.16 (2.1mm sq nom.) V75 P.V.C insulated.
HBZRH-80FZW Low smoke, Low Halogen P.V.C. sheathed.
Tysonic Speaker Flex.
Oxygen-free copper. RoHS compliant.

Construction

Conductor: 105 strands of 0.16 mm Annealed Copper to AS/NZS1125 drawn from Class 102 copper to AS/NZS157 .
Max. D.C. resistance at 20C : 8.6 ohms / km.

Insulation: Coloured V75 PVC to AS/NZS3808.
Nominal Diameter : 2.65 mm.
Nom. Wall Thickness: 0.60 mm.

Lay Up: Cores.
1. Red
2. Black
3. White
. Green

Sheath: Coloured P.V.C. type HBZRH-80FZW.
Nominal Diameter: 8.5 mm.
Nom. Wall Thickness: 1.0 mm.

Identification: Printed at max 1000mm spacings – Cable to be meter marked, i.e every 1 meter – TYCAB Y.O.M. – 2.1mm² 1 AWG CORE 100V LINE SPEAKER CABLE MM Cate.....
