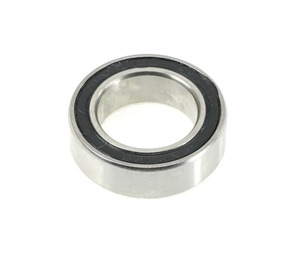

Enduro Max Double Row Bearing 3802 15 X 24 X 7

3802 Llu Max Bo Max Design, Double Row, Black Oxide, Abec 3, Radial Suspension Bearing 15mm 24mm X 7mm

Enduro Bearings Pioneered Max Type Bearings Over 20 Years Ago For Bicycles To Address The Challenges Associated With Mountain Bike Pivots. Max Bearings Provide 35 40% More Load Capacity Than Standard Radial Bearings By Employing With A Special Design Where The Maximum Number Of Balls (Full Complement) Are Inserted Into The Bearing, Via A Custom Ground Slot In The Races. The Race Grooves Are Also Deeper On These Bearings To Provide Increased Lateral Support To Counteract The Twisting And Multi Directional Forces Associated With Mountain Bike Pivots. This Max Type, Double Row, Black Oxide, Abec 3 Bearing Features Deep Groove Design Races, With Grade 10 Balls And Full Contact, Double Lip, Labyrinth (Llu) Seals For Maximum Protection Against The Elements, While Keeping The 90% Fill Of Almagard Extra High Pressure Grease Inside. The Double Row Design Greatly Reduces Flex In The Suspension Linkage While Doubling The Bearing Contact Area And The Black Oxide Coating Provides An Extra Level Of Corrosion Resistance And Extended Worry Free Performance.

This Bearing Has Been Used As A Suspension Pivot Bearing By Pivot And Santa Cruz Bikes.

The Enduro Line Of Bearings Are Available In High Carbon Chromium Steel, 440 C Stainless Steel, Ceramic Hybrid And Xd 15 With Ceramic Or Stainless Balls. Our Bearings Are Always Engineered With Deepest Groove Races Possible To Accommodate The Largest Balls And Feature Dual Lip Seals That Ride In A Micro Groove Creating A Full Labyrinth To Provide Superior Protection Against The Elements.

Static Load 969lbf / 4.31k N
Weight 10.96g
