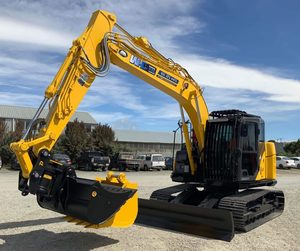

Sumitomo SH145x-6 2023 14.5-15tonne Excavator - Wairarapa Hire

Please call for rates. Base Std. operating weight 14,500 kg Boom length 4.63 m Arm length 2.50 m Bucket capacity (ISO heaped) 0.50 m3 Shoe width 500 mm Counterweight 3,500 kg Engine Make & model ISUZU GJ-4JJ1X Rated output 70.9kW/2,000 min-1 Piston displacement 2.999 ltr Hydraulic System Main pump 2 variable displacement axial piston pumps with regulating system Max oil flow 2 × 129 ltr/min Max pressure 34.3 MPa /with auto power boost 36.3 MPa Travel motor Variable displacement axial piston motor Parking brake type Mechanical disc brake Swing motor Fixed displacement axial piston motor Performance Travel speed 5.6/3.4 km/h Drawbar pull 116 kN Gradeability 70%<35°> Ground pressure 47 kPa Max swing speed 11.2 min-1 Swing torque 37.0 kN･m(3,773 kgf･m) Bucket digging force (ISO 6015) 90 kN /with power boost 95 kN Arm digging force (ISO 6015) 62 kN /with power boost 66 kN Download the Equipment Safety Data Sheet (ESDS) for this Excavator
