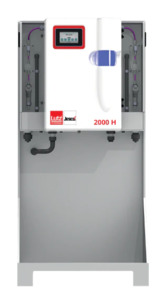

Minichlorgen T - 30 to 90 Grams/Hour

The MINICHLORGEN system automatically draws a concentrated brine solution from a salt saturator which is then diluted to the correct strength with softened water for efficient electrolysis. The diluted brine is automatically fed to the electrolytic cell where electric current is passed through the solution, producing sodium hypochlorite. The automatic process cycle is repeated until the product tank is filled.

Conventional sodium hypochlorite loses up to 20% of the chlorine it contains during storage. The 1% sodium hypochlorite generated by MINICHLORGEN does not require any additives; its chlorine contents remain stable over months.

Generated in close proximity to the process, the direct storage and dosing of sodium hypochlorite rules out accidental spillage of the sodium hypochlorite and contact with the operating personnel.

- MINICHLORGEN models available for 30, 60 and 90 g/h chlorine capacity
- Robust and attractive plastic cover
- Vivid LED illumination from the electrolytic chamber offers a presence of the chlorine generation process and at the same time indicating through simple LED colour change the current operational status of the process
- Easy to operate membrane keypad multi-lingual control panel & OLED display with green, amber and red LED operational status indicators
- Operational parameters displayed and code protected programming
- Alarm event log with real time clock recording
- Volumetric flow measurement of water and brine for consistent high efficiency electrolysis
- Safe operation by ambient air monitoring from a hydrogen detector
- Remote transfer of the fault message, data logging & RS485 options
- MINICHLORGEN is supplied with fixings for wall mounting, product tank level switch kit and brine suction assembles
