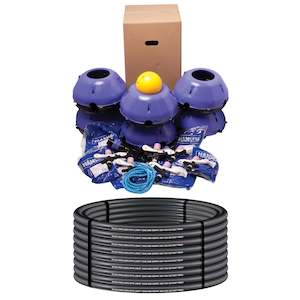

Hansen Effluent Pod Lines

Irripod Effluent Systems are flexible, cost effective Pod Pipeline Systems for effluent distribution. Designed to operate at low pressure.

Irripod Effluent Pod Sprinkler Lines are attached to the Effluent Pipe at 20m intervals to distribute the Effluent.

Contains:

- 6x Lilac Pods with Black Basses
- 6x 20mm Naan 5035 SD Sprinklers
- 6x Irripod 45mm LDPE Low Riser 20mm Male BSP Tapping Saddle Tops
- 6x Hansen 20mm Sockets
- 2x Hansen 45mm Camlock with Lilac Nut
- 1x 50mm Female Camlock PP
- 1x Hansen 50mm Tow Eye BSPT
- 1x Irripod Effluent Pipe 45mm x 120m Lilac coded
- 1x Yellow Tow Ball
- 1x Tow Rope 2 Metre Spliced Edges
- 6x Cross Tee Anchor 40-45mm LDPE
- 6x Wire Protectors
- 12x Wire Retainer Clips
- 6x Tapping Saddle Seals
- 6x Irripod Screw Bag (6x 10g Pozi Pan Head Self Tapping Stainless Steel Screws)
- 6x Irripod U Bolt Bag (2x M8x65mm Stainless Steel U Bolts, 4x M8 stainless steel Flanged Nuts)
- Packaging 1x Box and 1x Coil of 45mm Effluent Pipe
