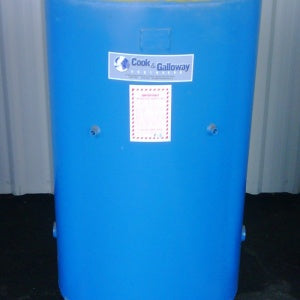

C & G Medium Pressure Tank

Our medium pressure tank range suits general farm use and rural blocks where runs are longer and higher pressures are required to achieve good flow reticulation. They are of a heavier gauge mild steel construction with a proven long life design with higher pressures. The brand and design is well known and trusted and has been in production for over 30 years. Designed with bore water systems in mind, they can be used for any system. They are fitted with standardized fittings. These tanks are constructed and tested to NZSS 1841 standard and comply with all New Zealand pressure vessel regulations. Benefits:

Pressure tanks reduce running costs of your pump and prolongs your pump life by reducing how frequently your pump starts They also help equalize pressure differentials reducing temperature fluctuations caused from two users drawing water at the same time. All Cook and Galloway Water pressure tanks are internally coated to maximise their operational life.

50 Gallon
The CGEM50 is a small size in our off the shelf medium pressure tank range.
Capacity: 227 Litres (50 Gallons)
Maximum working pressure: 1035KPa (150PSI)
Diameter: 580 mm (22.5")
Height: 1310 mm (51.5")
Weight: 92 Kgs

70 Gallon
The CGEM70 is a medium size in our off the shelf medium pressure tank range.
Capacity: 318 Litres (70 Gallons)
Maximum working pressure: 1035KPa (150PSI)
Diameter: 580 mm (22.5")
Height: 1610 mm (63")
Weight: 110 Kgs

90 Gallon
The CGEM90 is a large size in our off the shelf medium pressure tank range.
Capacity: 408 Litres (90 Gallons)
Maximum working pressure: 1035KPa (150PSI)
Diameter: 580 mm (22.5")
Height: 1910 mm (75")
Weight: 127 Kgs

200 Gallon
The CGEM200 is a large size in our off the shelf medium pressure tank range.
Capacity: 910 Litres (200 Gallons)
Maximum working pressure: 1035KPa (150PSI)
Diameter: 735 mm (30.5")
Height: 2200 mm (87")
Weight: 191 Kgs
