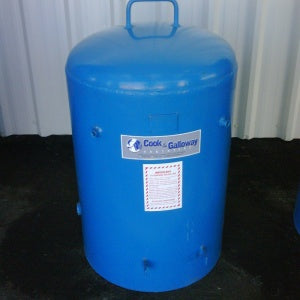

C & G Standard Pressure Tank

Our standard pressure tank range suits general farm use and small rural blocks. They are of a heavy gauge mild steel construction with a proven long life design. The brand and design is well known and trusted and has been in production for over 30 years. Designed with bore water systems in mind, they can be used for any system. They are fitted with standardized fittings. These tanks are constructed and tested to NZSS 1841 standard and comply with all New Zealand pressure vessel regulations. Benefits:

Pressure tanks reduce running costs of your pump and prolongs your pump life by reducing how frequently your pump starts They also help equalize pressure differentials reducing temperature fluctuations caused from two users drawing water at the same time. All Cook and Galloway Water pressure tanks are internally coated to maximise their operational life.

20 Gallon
The CGES20 is the smallest size in our off the shelf low (Standard) pressure tank range.
Capacity: 90 Litres (20 Gallons)
Maximum working pressure: 863 KPa (125PSI)
Diameter: 465 mm (18.25")
Height: 740 mm (29")
Weight: 36 Kgs

50 Gallon
The CGES50 is a middle size in our off the shelf low (standard) pressure tank range.
Capacity: 227 Litres (50 Gallons)
Maximum working pressure: 828 KPa (100PSI)
Diameter: 575 mm (22.5")
Height: 1310 mm (51.5")
Weight: 74 Kgs 70 Gallon
The CGES70 is the second to largest of our off the shelf low (standard) pressure tank range.
Capacity: 318 Litres (70 Gallons)
Maximum working pressure: 828 KPa (100PSI)
Diameter: 575 mm (22.5")
Height: 1610 mm (63")
Weight: 88 Kgs
90 Gallon The CGES90 is the largest of our off the shelf low (standard) pressure tank range. Capacity: 90 Gallons Maximum working Pressure: 828kpa (100 psi) Diameter: 580mm Height: 1840mm Weight: 102kg
