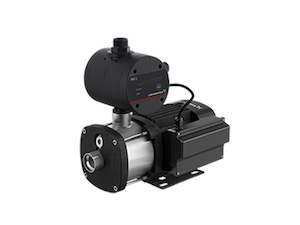

Grundfos Multistage Self Priming Booster - CMB-SP3-47

CMB-SP is a self-priming compact booster supplied with a Grundfos PM1 or PM2 pressure manager for water supply in domestic and light commercial applications. It can create a suction lift of up to 8 m.

Suitable for:

- Commercial water pressure boosting
- Attic
- Bathroom
- Domestic water pressure boosting

Specifcations:

- Voltage: 1 x 240 V, 50 Hz
- Power: 0.5 kW
- Max Head 48m
- Max Flow 70lpm
- Inlet/Outlet: 1"
- Temp Range: 0 °C to 60 °C
- Sound pressure level< 55 dBa
- Suction: 4 meters

Features:

- Compact design to cater for most spaces
- Use of stainless steel impellers provides the longest possible life
- Dry-running protection saves your pump from damage if your water supply runs out
- Anti-cycling alarm informs homeowners of potential pipe leakage, saving water and protecting the pump
- Suitable for generator operation
- Stainless steel impeller, intermediate chambers and shaft
- Cast iron housing
- Hard wearing carbon / ceramic seal
- IP55 motor
- Complies with AS/NZS 4020 – testing for products for use with drinking water
- 32 mm inlet
- User-friendly interface with LED indicators displaying power status, pump running, alarm indication and pressure indication
- Dry run protection
- Thermal overload protection
- Cycling alarm and maximum continuous operation time - 30 mins to protect the pump and ensure a long life.

View Product Brochure Here.
