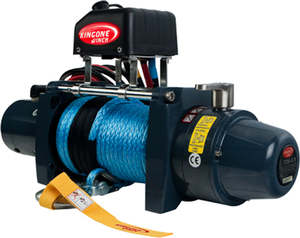

KINGONE TDS 9.5H SR

Heavy duty series wound motor delivers superior torque output and faster line speed.

3 stage planetary gearbox delivers the most reliable and durable performance of winch under the worst condition.

Automatic,double cone brake.

Rotating ring gear clutch have the free spooling positioned actually for the rapid pay out of wire rope with ease.

Installation ,operation and maintenance with ease.
Product Detail​
Specification Specification TDS 9.5 SR Line Pull 4,309kgs/9,500lbs Motor 12V/5.0HP 24V/3.0HP Gear Train Three stage Gear Ratio 173:1 Freespooling Clutch Rotating ring gear Drum Size Φ2.5"×9"(Φ63.5mm×229mm) Wire Rope Size Φ11/32"×100'(Φ8.7mm×30m)
Wire Rope Type Aircraft A7×19 Synthetic Rope Size Φ11/31"×100'(Φ9.0mm×30m)
Line Pull​ Layer of Rope TDS 9.5 1 9,500lbs/4,309kgs 2 7,800lbs/3,500kgs 3 6,550lbs/2,977kgs 4 5,700lbs/2,578kgs
Line Speed and AMP Draw (1st layer of rope on the drum) Load Line Speed AMP Draw(12V) AMP Draw(24V) No Load 55.8FPM/17MPM 60 40 2,000lbs/907kgs 14.7FPM/4.5MPM 140 106 4,000lbs/1,814kgs 12.5FPM/3.8MPM 181 158 6,000lbs/2,722kgs 8.9FPM/2.7MPM 248 187 8,000lbs/3,650kgs 8.2FPM/2.5MPM 295 226 9,500lbs/4,309kgs 7.5FPM/2.3MPM 338 259
Dimensions (mm)
Standard Accessories

Controller TA-0906

Synthetic Rope With Hook

Hawse fairlead TA-0921

Control Unit TA-0909/12V TA-0909/24V

Mounting Hardware

Handsaver Strap
