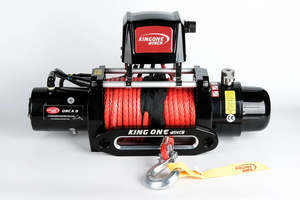

ORCA 13.0 SR 13000LBS

Heavy duty series wound motor delivers superior torque output and faster line speed.

3 stage planetary gearbox delivers the most reliable and durable performance of winch under the worst condition.

Automatic,double cone brake.

Rotating ring gear clutch have the free spooling positioned actually for the rapid pay out of wire rope with ease.

Installation ,operation and maintenance with ease.
Product Detail​
Specification Title ORCA 13.0 SR Line Pull 5,897kgs/13,000lbs Motor 12V/24V series wound Brake 100% full load double cone braking Gear Ratio 206:1 Wire Rope Size Φ9.5mmx27M(Φ3/8"x90') Synthetic Rope Size Φ10mmx27M(Φ11/28"x90')
Line Pull​ Layer of Wire Rope Max Line Pull 1 13,000lbs/5,897kgs 2 10,500lbs/4,763kgs 3 9,300lbs/4,218kgs 4 8200lbs/3720kgs
Line Speed and AMP Draw (1st layer of rope on the drum) Load Line Speed AMP Draw(12V) AMP Draw(24V) No Load 36FPM/11MPM 65 40 6,000lbs/2,722kgs 11.5FPM/3.5MPM 220 120 11,000lbs/4990kgs 5.6FPM/1.7MPM 340 170 13,000lbs/5,897kgs 3.7FPM/1.13MPM 395 205
Dimensions (mm)
Standard Accessories

Controller

Wire Rope With Hook

4 Way Roller Fairlead

Control Unit

Mounting Hardware

Handsaver Strap
