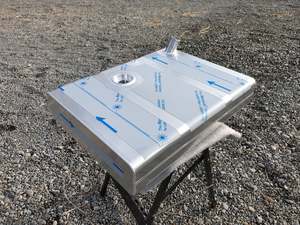

Austin Healey Aluminum Fuel tank 62L

You are bidding on a NEW factory replacement Austin Healey full aluminum fuel tank.

Dimensions: 755mm wide x 575mm deep x 150mm high and manufactured from 3mm aluminum

Please note, this tank is 25mm taller than a factory tank
Have not tested with the factory straps, may require modifications since this tank is 25mm taller than the factory unit.
Designed to work within the factory constraints utilizing the factory fuel sender.
Has internal baffles and a baffled low point sump for anti surge.
Professionally TIG welded to a high standard.
Pressure tested to 5 PSI.
Designed in CAD (Fusion 360).
Hand fabricated in Christchurch and can modify to your requirements.

This is not a stocked item. It will need to be fabricated so there will be a lead time.

Other fuel tanks can be custom built to your specifications / drawings, as well as custom radiators utilizing a PWR based radiator core.
